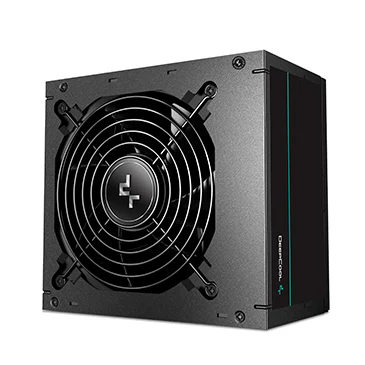

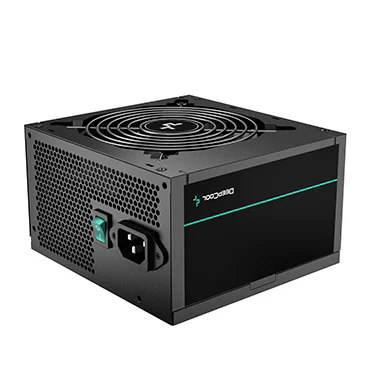

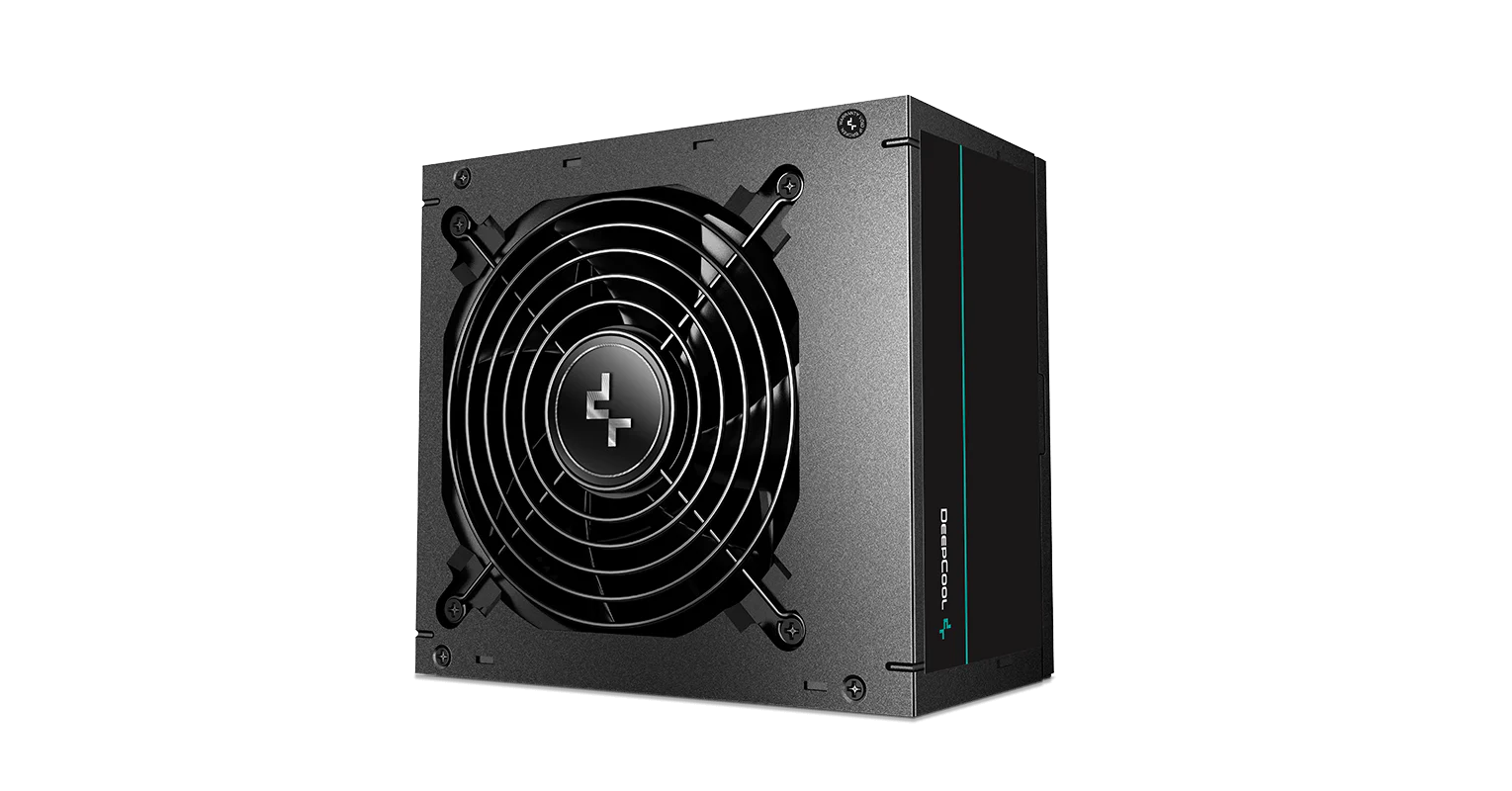

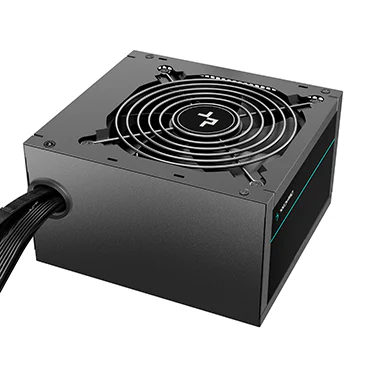

Deepcool PM650D 650 Watt 80 Plus Gold Certified Power Supply (Black)

Deepcool PM650D 650 Watt 80 Plus Gold Certified Power Supply (Black)


PM650D
DeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

COLOR

black
MODEL



Reliable 80 PLUS Gold Efficiency

DeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS GOLD CERTIFIED
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

QUALITY TOPOLOGY

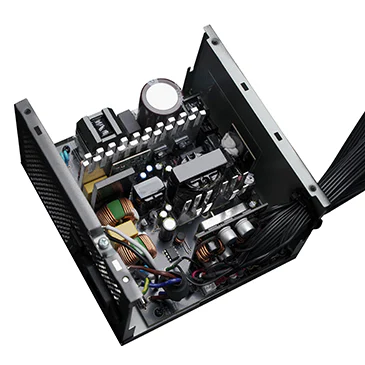

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

BUILT TO SPEC
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

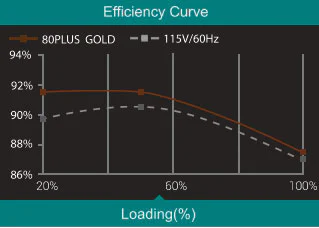

80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

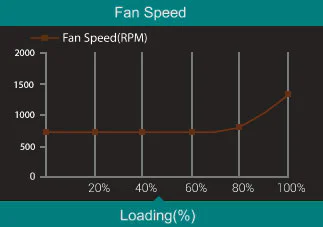

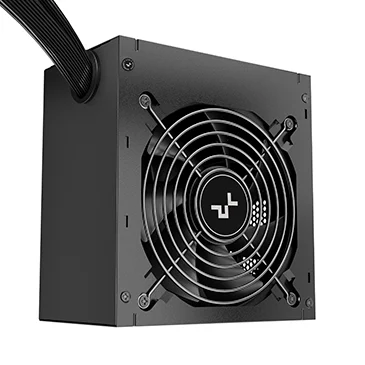

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

EFFICIENCY THROUGHOUT
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

PEACE OF MIND
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP/UVP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection

Over Temp Protection
Over Current Protection
Under Voltage Protection

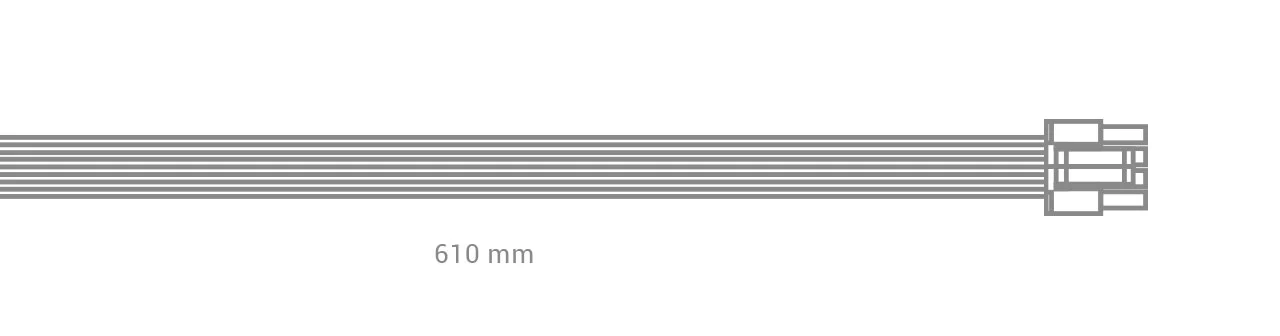

Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 1
X2
SATA x 3
X2
4Pin Peripheral x 3
X1



Technical Spec
TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS CertificationsGOLD
Fan Size120mm
Fan BearingHypro Bearing
TopologyActive PFC + Full Bridge SRC LLC + DC to DC
CapacitorsJapanese Bulk Capacitor
Power Good Signal100-150ms
Hold Up Time≥16ms(75% Load)
Efficiency≥90% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature0-40°C
RegulatoryTUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Erp RegulationErP(2014)
MTBF100,000 Hours
EAN P/N6933412709657 R-PM650D-FA0B-AU
6933412709664 R-PM650D-FA0B-CN
6933412709671 R-PM650D-FA0B-EU
6933412709688 R-PM650D-FA0B-JP
6933412709695 R-PM650D-FA0B-UK
6933412709701 R-PM650D-FA0B-US
6933412709718 R-PM650D-FA0B-WO
6933412710097 R-PM650D-FA0B-AR
6933412710103 R-PM650D-FA0B-BR
6933412711117 R-PM650D-FA0B-BU
